    Description

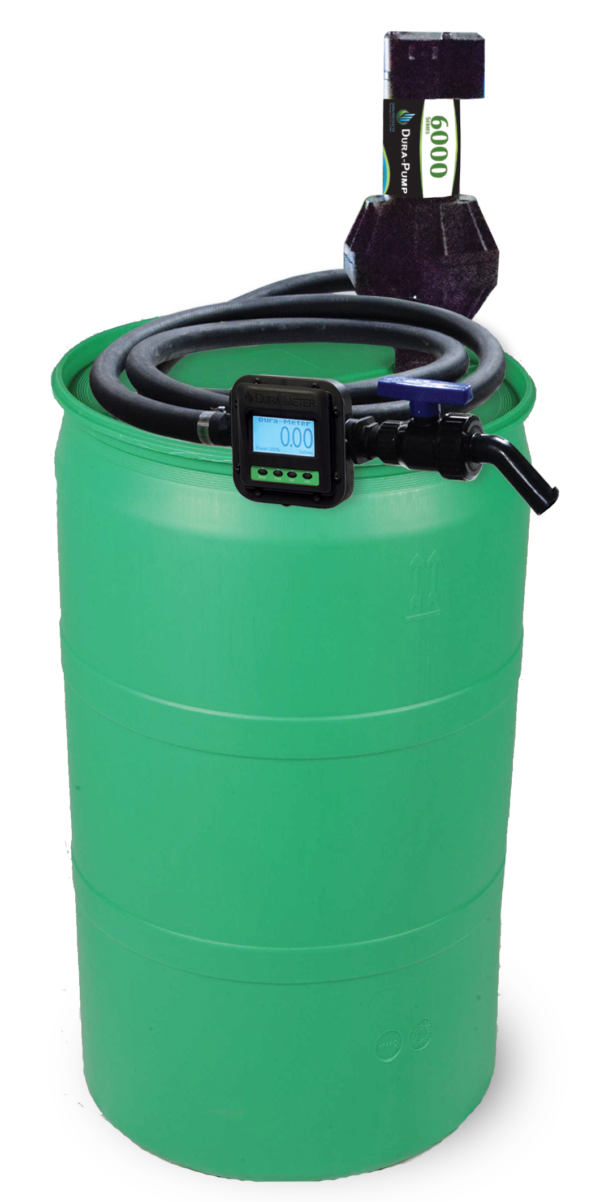

    Dura-Pump™ Top Unload – Drum with Chemical Transfer Pump

    Easily use a Dura-Pump™ chemical transfer pump with a 30/55 gallon drum

    • Top mount application with 2″ NPT bung
    • 1″ Telescoping down tube to accommodate varying tank heights
    • Tank drum not included
    • Includes 2 Year Maintenance Program



    The Dura-Pump™ Herbicide Pump features

    • High-Flow with up to 18 GPM free flow rate
    • Self-priming diaphragm pump with internal by-pass
    • Motor thermally protected from overheating
    • 30 minute duty cycle
    • Suction port has 2″ Male NPT and 1″ Female NPT
    • Pump is easily field serviceable
    • Features 2 Year Maintenance & Warranty Plan



    Dura Products high-flow Dura-Pump™ can pump up to 18 Gallons per Minute (68 liters per minute).  It is a self-priming diaphragm pump with internal by-pass.  Additionally, the motor is thermally protected from overheating.



    The Dura-Pump™ is easily field serviceable, so you can extend the life of your pump with simple repairs.  It has 30 minute duty cycle.  Finally, all Dura Products come standard with a 2-Year Warranty & Maintenance Program, so you can be confident in your purchase.



    Herbicide Pump Additional Specifications

    • Vertical Suction Lift:  Self-priming to 10ft, 3m
    • 12 Volt power cord is 20ft, 6m
    • 110 Volt power cord is 6.5ft, 2m
    • Motor:  1/4 HP; 186W
    • Amps:  12 Volt: 18.5; 110 Vlot: 2.0
    • Discharge Port:  1″ Female NPT Thread
    • Wetted materials:  Polypropylene, Santoprene, EPDM, Viton or Silicone Seals, 304 Stainless Steel

    Additional information

    Weight 35 lbs
    Dimensions 27 × 17 × 12 in

    Specifications

    Pump: High-Flow Dura-Pump™


    Downtube: 1″ Telescoping


    Discharge Hose: 1″ x 12ft


    Nozzle: Ball valve


    Meter: Dura-Meter™ (optional)


    Other: All hose clamp, elbows and nipples

    EPDM vs Viton Seals

    EPDM seals are good in steam applications and offer excellent chemical resistance to a variety of acids and alkalines. Fairly good in ketones and alcohols. Not recommended for use in applications involving petroleum oils, strong acids, or strong alkalines. They have exceptionally good weather aging and ozone resistance. Temperature rating is from -20ºF to +225ºF (250ºF intermittent service).



    Viton® seals have excellent chemical resistance. They can be used in most applications involving mineral acids, salt solutions, chlorinated hydrocarbons and petroleum oils. They are particularly good in hydrocarbon service. Not suitable for steam or hot water service. Temperature rating is from -20°F to +300°F.
