Home Dura Products Specialty Systems Dura-Pump™ Bottom Unload
DPB
  • DPB Dura-Pump™ Bottom Unload

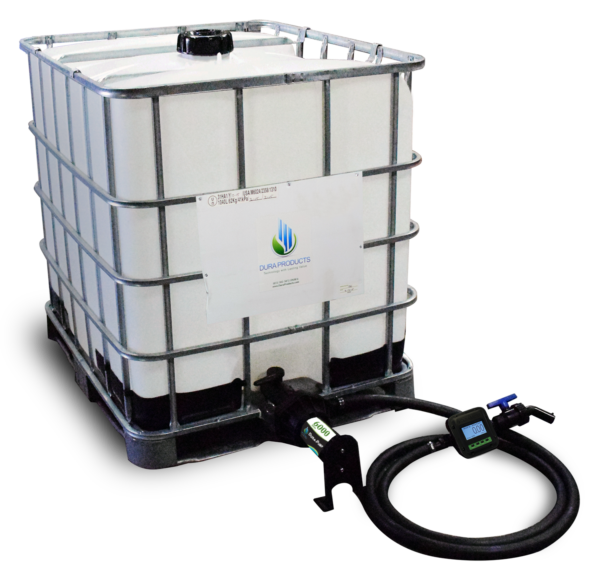

  • DPBM Dura-Pump™ Bottom Unload with Dura-Meter™
  • Dura-Pump™ Bottom Unload

    $563.00$932.00

    Clear

    Description

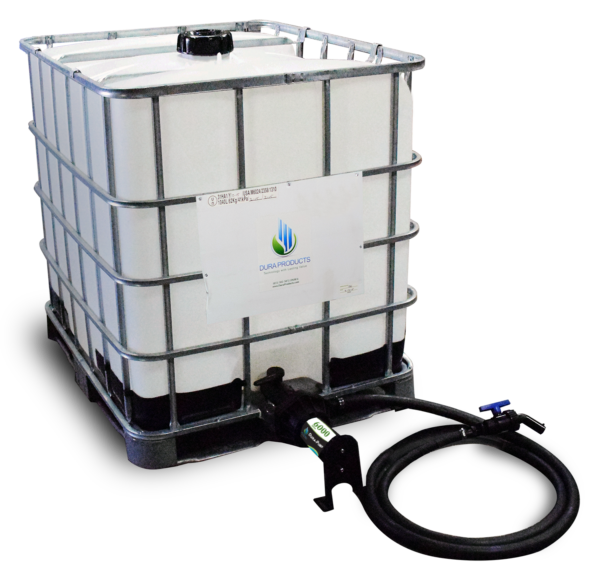

    Dura-Pump™ Bottom Unload Ag Chemical Transfer System



    The Dura-Pump™ Bottom Unload Ag Chemical Transfer System with Dura-Pump™ Ag Pump is configured to mount at the bottom of a tank/tote.  This system can be purchased with an optional Dura-Meter™ and includes a 2-year Warranty and Maintenance Program.

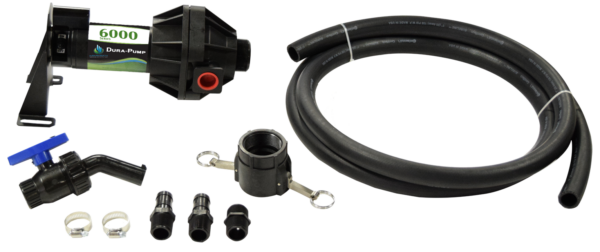

    The Dura-Pump™ Bottom Unload System comes with a 12 Volt or 110 Volt Dura-Pump™, 1″ by 12ft discharge hose, 2″ camlock and rear motor bracket.  It also includes a ball valve nozzle and all hose clamps, barbs and nipples that you will need.



    Features of the Dura-Pump™

    • High-flow pump with up to 15 gallons per minute flow rate
    • Self-priming diaphragm pump with internal bypass
    • Thermally protected motor will not overheat
    • Has a 30-minute duty cycle
    • Suction port has 2″ Male and 1″ Female NPT
    • Includes a 2-year Warranty & Maintenance Program



    Features of the optional Dura-Meter™

    • Impact resistant Lexan faceplate
    • 100% moisture sealed circuitry
    • Menu driven backlit display
    • Plumbed for both in-line and 90 degree applications
    • Extended battery life with use of 4″AAA” batteries
    • Faceplate over-molded with Santoprene and filled with gel for improved shock resistance



    Call our office for Promotions 317-877-7867



    Tanks, totes, and drums sold separately.  Always turn the pump off and disconnect it from the power source when not in use.

    Additional information

    Weight 35 lbs
    Dimensions 27 × 17 × 12 in

    Specifications

    Pump: High-Flow Dura-Pump™


    Discharge Hose: 1″ x 12ft


    Camlock: 2″; direct attach to tote


    Motor Bracket: Yes; rear


    Nozzle: Ball valve


    Meter: Dura-Meter™ (optional)


    Other: All hose clamp, elbows and nipples

    EPDM vs Viton Seals

    EPDM seals are good in steam applications and offer excellent chemical resistance to a variety of acids and alkalines. Fairly good in ketones and alcohols. Not recommended for use in applications involving petroleum oils, strong acids, or strong alkalines. They have exceptionally good weather aging and ozone resistance. Temperature rating is from -20ºF to +225ºF (250ºF intermittent service).



    Viton® seals have excellent chemical resistance. They can be used in most applications involving mineral acids, salt solutions, chlorinated hydrocarbons and petroleum oils. They are particularly good in hydrocarbon service. Not suitable for steam or hot water service. Temperature rating is from -20°F to +300°F.
