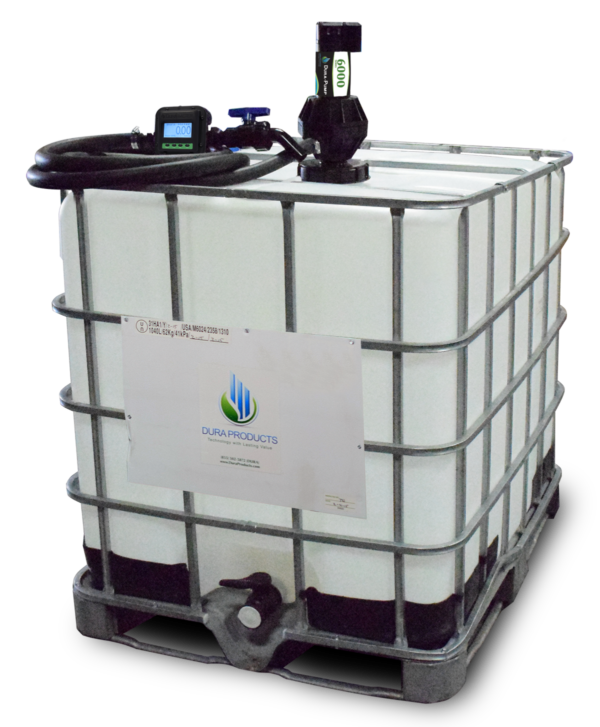

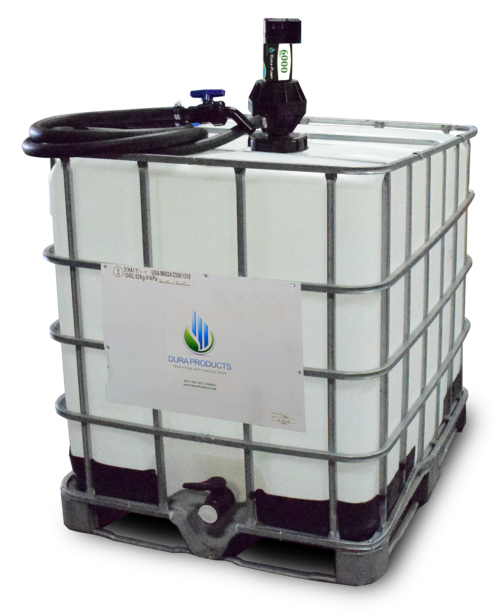

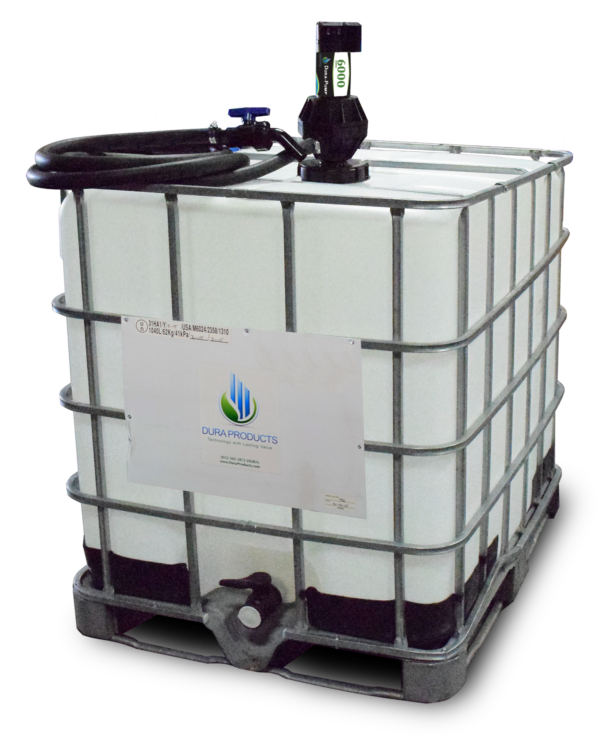

    Dura-Pump™ Top Unload with Dura-Pump™ Ag Pump


    The Dura-Pump™ Top Unload with Dura-Pump™ Ag Pump is a top mount application with 2″ NPT Bung and 1″ telescoping downtube.  It works with varying tank heights.  The system also includes a 2-year Warranty and Maintenance Program.


    The Dura-Pump™ Top Unload System comes with a 12 Volt or 110 Volt Dura-Pump™.  The Dura-Pump™ is a high-flow ag chemical pump with up to a 18 gallons per minute flow-rate.  It is a self-priming diaphragm pump with internal by-pass and a 30-minute duty cycle.  Its motor is thermally protected, so it won’t overheat and the suction port has 2″ Male and 1″ Female NPT.  Dura Products designed the Dura-Pump™ to be easily field serviceable with readily available replacement parts.


    The Dura-Pump™ Top Unload System is available with or without a Dura-Meter™.  The Dura-Meter™ is made of impact resistant Lexan faceplate and 100% moisture-sealed circuitry. Its menu driven backlit display makes the Dura-Meter™ easy to read in all light conditions.  Use the Dura-Meter™ in both in-line and 90-degree applications.


    Call or email our office for Promotions at 317-877-7867 or


    Tanks, totes, and drums sold separately.  Always turn the pump off and disconnect it from the power source when not in use.

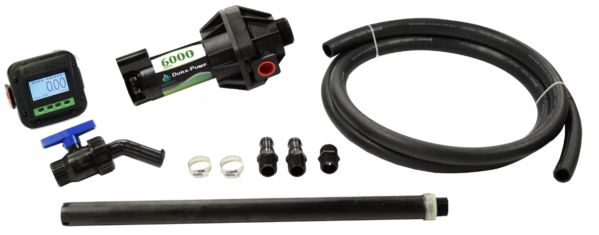

    Additional information

    Weight 35 lbs
    Dimensions 27 × 17 × 12 in


    Pump: High-Flow Dura-Pump™

    Downtube: 1″ Telescoping

    Discharge Hose: 1″ x 12ft

    Nozzle: Ball valve

    Meter: Dura-Meter™ (optional)

    Other: All hose clamp, elbows and nipples

    EPDM vs Viton Seals

    EPDM seals are good in steam applications and offer excellent chemical resistance to a variety of acids and alkalines. Fairly good in ketones and alcohols. Not recommended for use in applications involving petroleum oils, strong acids, or strong alkalines. They have exceptionally good weather aging and ozone resistance. Temperature rating is from -20ºF to +225ºF (250ºF intermittent service).


    Viton® seals have excellent chemical resistance. They can be used in most applications involving mineral acids, salt solutions, chlorinated hydrocarbons and petroleum oils. They are particularly good in hydrocarbon service. Not suitable for steam or hot water service. Temperature rating is from -20°F to +300°F.
