    Description

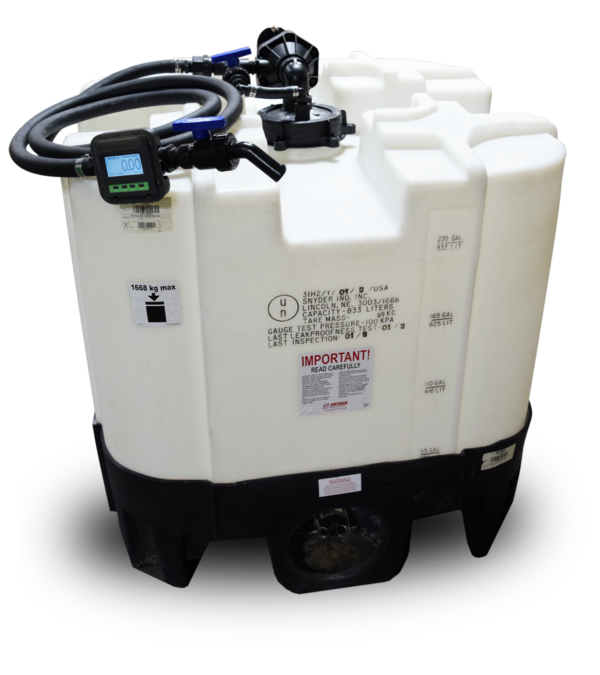

    Snyder / GEM Cap Tank System



    The Snyder/GEM Cap Tank Pump System is one of Dura Products Dura-Pump™ Specialty Systems.  This system is available with a 12 Volt or 110 Volt Dura-Pump™, and you can add an optional Dura-Meter™

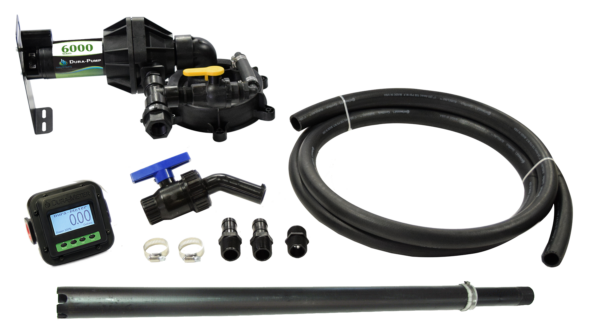

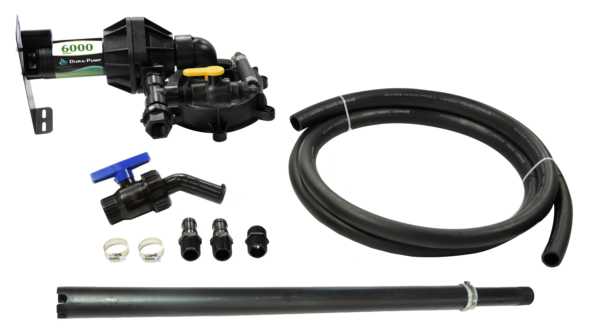

    The Dura-Pump™ Snyder/GEM Cap Pumping System contains:



    • High-Flow Dura-Pump™
    • 1″ x 12ft, 3.6m discharge hose
    • GEM Cap Lid:  Spin Collar, all plumbing assembled on pump
    • Rear motor bracket
    • 1″ Telecoping Downtube
    • Ball Valve Nozzle
    • All hose clamps, barbs and nipples
    • Includes 2-year Warranty and Maintenance Program

    Optional Dura-Meter™ sold here



    The Dura-Pump™ Herbicide Pump features



    • High-Flow with up to 18 GPM free flow rate
    • Self-priming diaphragm pump with internal by-pass
    • Motor thermally protected from overheating
    • 30 minute duty cycle
    • Suction port has 2″ Male NPT and 1″ Female NPT
    • Pump is easily field serviceable
    • Features 2 Year Maintenance & Warranty Plan



    Dura Products high-flow Dura-Pump™ can pump up to 15 Gallons per Minute (56 liters per minute).  It is a self-priming diaphragm pump with internal by-pass.  Additionally, the motor is thermally protected from overheating.



    The Dura-Pump™ is easily field serviceable, so you can extend the life of your pump with simple repairs.  It has 30 minute duty cycle.  Finally, all Dura Products come standard with a 2-Year Warranty & Maintenance Program, so you can be confident in your purchase.



    Call or email our office for Promotions 317-877-7867 or CustomerService@PumpAndMeter.com







    Additional information

    Weight 47 lbs
    Dimensions 27 × 17 × 15 in

    Specifications

    Pump: High-Flow Dura-Pump™


    Discharge Hose: 1″ x 12ft


    GEM Cap Lid: Spin collar; all plumbing assembled on pump


    Motor Bracket: Yes; rear


    Downtube: 1″ Telescoping


    Nozzle: Ball valve


    Meter: Dura-Meter™ (optional)


    Other: All hose clamp, elbows and nipples

    EPDM vs Viton Seals

    EPDM seals are good in steam applications and offer excellent chemical resistance to a variety of acids and alkalines. Fairly good in ketones and alcohols. Not recommended for use in applications involving petroleum oils, strong acids, or strong alkalines. They have exceptionally good weather aging and ozone resistance. Temperature rating is from -20ºF to +225ºF (250ºF intermittent service).



    Viton® seals have excellent chemical resistance. They can be used in most applications involving mineral acids, salt solutions, chlorinated hydrocarbons and petroleum oils. They are particularly good in hydrocarbon service. Not suitable for steam or hot water service. Temperature rating is from -20°F to +300°F.
