    Description

    Dura-Pump™ DEF Top Unload with DEF Chemical Pump

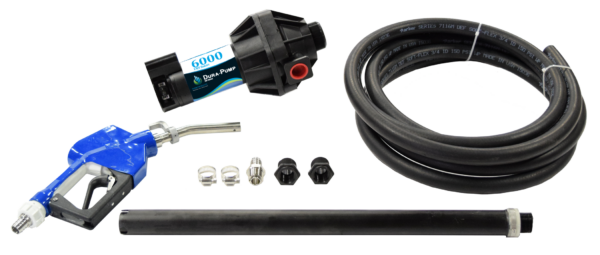

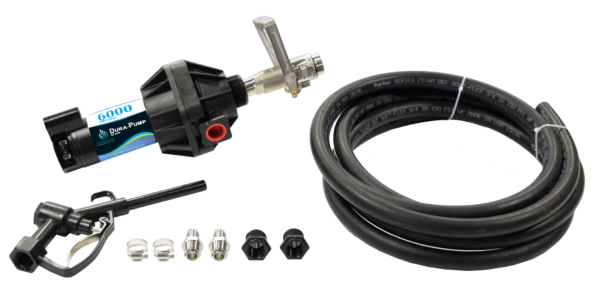

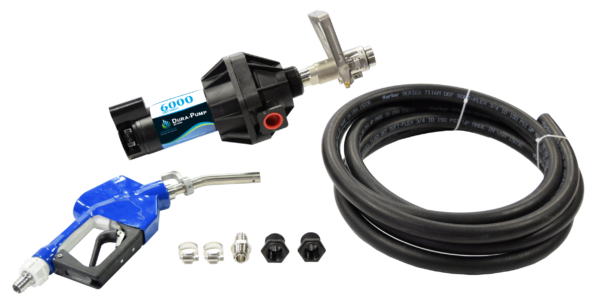

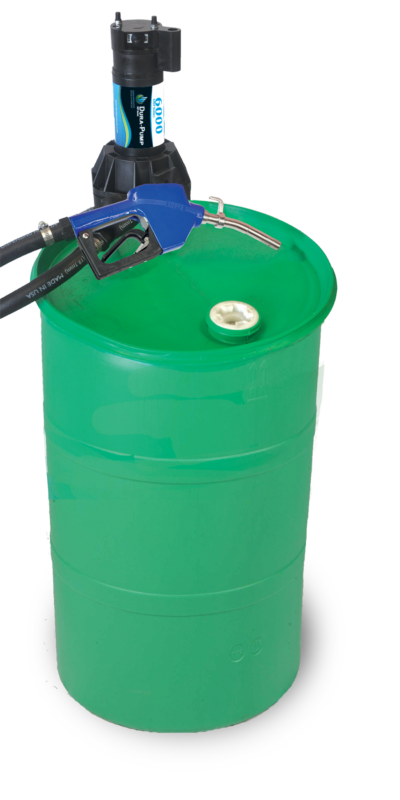

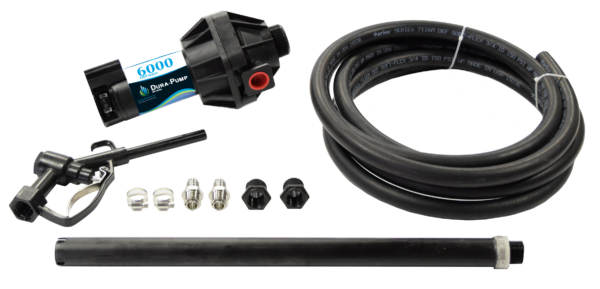

    The Dura-Pump™ DEF (Diesel Exhaust Fluid) Top Unload System comes with a 12 Volt or 110 Volt Dura-Pump™ DEF chemical pump and is available with or without a DEF Dura-Meter™.  In addition to the high-flow DEF Dura-Pump™, the system contains a 1″ telescoping downtube, manual or automatic nozzle, 3/4″ x 20ft discharge hose and all necessary hose clamps and fittings.  This system can be mounted to the top of a 35/50 gallon drum.



    DEF Dura-Pump™ Features

    • High-flow pump with up to 18 gallons per minute/68 liters per minute free flow rate and 10+ gallons per minute/40+ liters per minute with 3/4″ discharge hose
    • Self-priming diaphragm pump with internal bypass
    • The motor is thermally protected from overheating
    • It has a 30 minute duty-cycle
    • The suction port has 2″ Male and 1″ Female NPT
    • Easily field serviceable
    • 10-minute auto-shut off motor (available in 110 Volt only)
    • Includes a 2-year Warranty & Maintenance Program



    Optional DEF Dura-Meter™ Features

    • Made of impact resistant Lexan faceplate
    • 100% moisture-sealed circuitry
    • Has the same great menu driven backlit display
    • Plumbed for both in-line and 90 degree applications
    • Includes a 2-year Warranty & Maintenance Program



    Tote, Lid and Container valves sold separately (See Accessories & Parts)



    Call our office for Promotions 317-877-7867

    Additional information

    Weight 35 lbs
    Dimensions 27 × 17 × 12 in

    Specifications

    10+ GPM Pump: High-Flow Dura-Pump™


    Coupler: RPV; MicroMatic with RSV model


    Downtube: 1″ Telescoping with non-RSV model


    Nozzle: Manual or Automatic


    Discharge Hose: 3/4″ x 20ft DEF


    Meter: DEF Dura-Meter™ (optional)


    Other: All hose clamps and fittings
